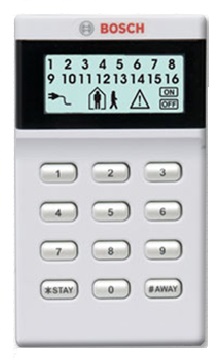

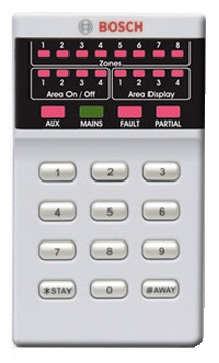

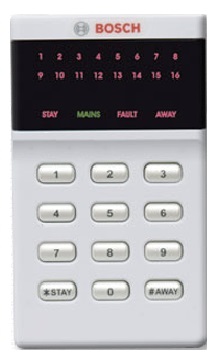

LED Codepad                      LCD Codepad            Master Partitioned LED Codepad




Click here to download User Guide


Function

Instructions



Disarm - 'Stay' only

[code] + Stay

Disarm - Full

[code] + Away

Arm - Stay

[code] + Stay

Arm - Away

[code] + Away

Quickarm - Stay

Hold *

Quickarm - Away

Hold #



Clear alarm memory

N/A - clears on arming



Acknowledge a Fault

Away / #



Bypass a zone

Stay Stay [Zone#] Stay Away


(area must be disarmed)



Mains Indicator

ON - Normal (mains ok)


FLASHING - Mains Fail



Reset smoke / fire

[code] + Away



Silent Panic

[code] & 9 & Away



Audible Panic

1&3, 4&6, 7&9 or S&A


(press and hold together)



Diagnostic Test

press & hold 5



Send Test signal

press & hold 9



Maximum # of Users

8 Users

+ 8 Remotes



Maximum # of Zones

8 Hardwired Zones


4 Burglary


4 Tamper


Or 16 Wireless Zones



Maximum # of Partitions

2 Partitions
