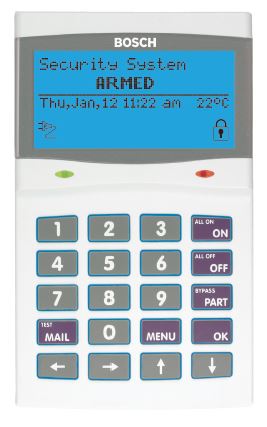

LCD Codepad


Click here to download User Guide


Function

Instructions



Disarm - 'Stay' only

[code] + OFF

Disarm - Full

[code] + OFF

Arm - Stay

[code] + PART


↓ and ↑ to select Part Mode + OK

Arm - Away

[code] + ON



Clear alarm memory

[code] + ON then [code] + OFF



Acknowledge a Fault




Bypass a zone

[code] + MENU + 3 0 2 + OK


[zone #] + OK + ON + OK



Mains Indicator

ON - Normal (mains ok)


FLASHING - Mains Fail



Reset smoke / fire

[master] + MENU + 3 0 5


↓ and ↑ to select Area + OK



Silent Panic

[code] + [last 2 digits of code again] + ON or OFF


eg. if code = 0743 and system is armed, enter:


 074343 + OFF



Audible Panic

↑ & → keys


(press and hold together for 2 sec)



Diagnostic Test

[master] + MENU + 7 0 1 + OK


↓ and ↑ to scroll + OK to view


OK  or MENU to exit



Send Test signal

[master] + MENU + 5 9 0 + OK



Maximum # of Users

256 Users



Maximum # of Zones

16 Zones


Expandable to 144



Maximum # of Partitions

8 Partitions
