PC1565

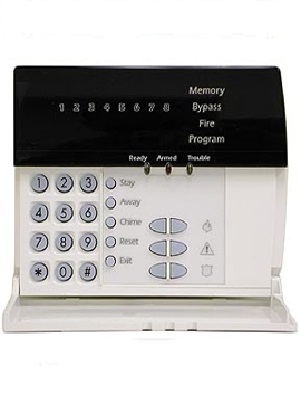

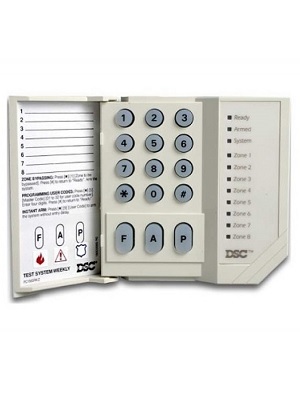

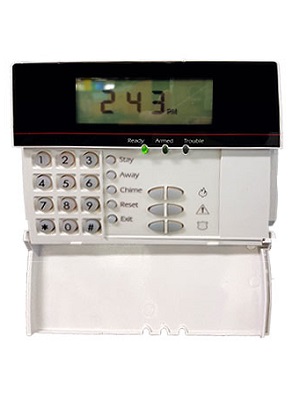

LED Codepad 1 LED Codepad 2 LCD Codepad
Click here to download User Guide
|
Function |
Instructions |
|
|
|
|
Disarm |
[Code] |
|
|
|
|
Arm |
[Code] |
|
|
|
|
Quickarm - Away |
* 0 |
|
|
|
|
Clear alarm memory |
# within 30 secs of disarm |
|
|
|
|
|
|
|
Bypass a zone |
* 1 [Zone] (2 digit) # |
|
|
|
|
Chime On/Off |
* 4 |
|
|
|
|
Reset smoke / fire |
# to silence, * 72 to reset |
|
|
|
|
|
|
|
Audible Panic |
Blue shields for 2 secs |
|
|
|
|
Diagnostic Test |
* 2 [Zone Illuminates] # |
|
|
|
|
Maximum # of Users |
38 Users |
|
|
|
|
Maximum # of Zones |
8 Hardwired Zones |
|
|
Or 32 Wireless Zones w/ Expander |
|
|
|
|
Maximum # of Partitions |
1 Partition |
