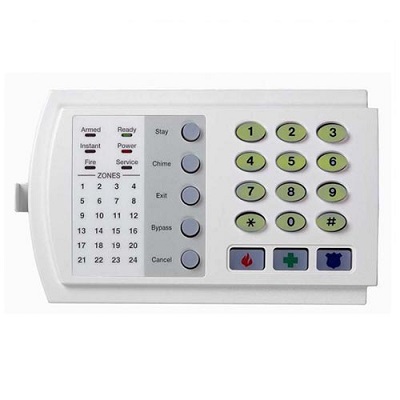

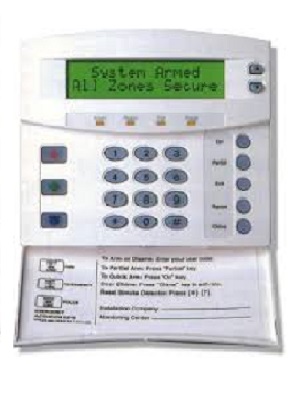

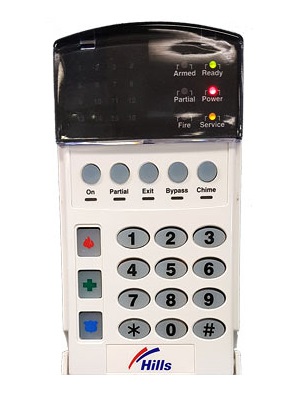

LED Codepad                                 LED Codepad                                   LCD Codepad



Click here to download User Guide (DAS NX4/NX8)

Click here to download User Guide (DAS NX12)

Click here to download User Guide (DAS NX16)


Click here to download User Guide (Reliance LED Codepad)

Click here to download User Guide (Reliance LCD Codepad)


Function

Instructions



Disarm

[Code]



Arm - Stay

Partial

Arm - Away

[Code]

Quickarm - Away

On



View alarm memory

* 3



Clear Alarm Memory

[Code]





Bypass a zone

Bypass + [Code] + [Zone](2 digits) + Bypass



Reset smoke / fire

[Code] * 7





Audible Panic

Blue shields for 2 secs



Diagnostic Test

* 2 [Zone Illuminates] #



Maximum # of Users

8 (NX4/NX8) | 40 (NX12) | 99 (NX16)


8 (R8) | 40 (R12) | 99 (R128)



Maximum # of Zones

8 (NX4/NX8) | 16 (NX12) | 48 (NX16)


8 (R8) | 16 (R12) | 48 (R128)



Maximum # of Partitions

1 (NX4/NX8) | 2 (NX12) | 8 (NX16)


1 (R8) | 2 (R12) | 8 (R128)
